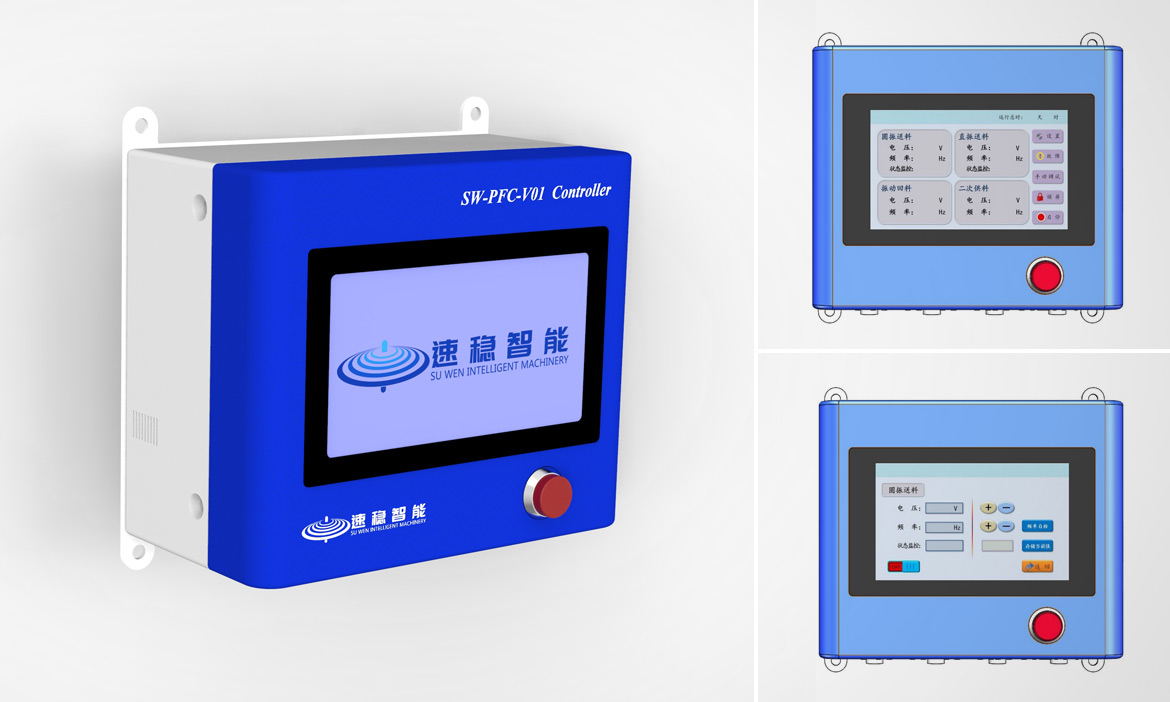

壓電驅動式振動機械多路控制器
Suwenzhinengjixie
產品簡介：
“壓電驅動式振動機械多路控制器”是常州速穩智能機械有限公司自主研發的新一代控制器。 產品特點：
“壓電驅動式振動機械多路控制器”是常州速穩智能機械有限公司自主研發的新一代控制器。 產品特點：
1.4.3寸觸摸屏顯示及控制，方便操作和查看數據
2.多路控制，一臺控制器同時可控制4路振動器
3.界面友好，操作系統簡單，中文顯示，實時顯示每路控制參數
4.每路輸出參數：電壓0-220V，精度0.1V；頻率50-600Hz,精度0.1Hz
5.兩路主路（圓振和直振）閉環控制，振動狀態實時監控，自動穩速
6.每路可自動搜頻，自動尋找最佳工作頻率點，減少人為工作
7.每路輸出可單獨啟停，也可多路一鍵啟停
8.PLC遠程控制啟停，或外部開關控制啟停
9.閉環控制參數自動存儲，重新開機自動按照存儲數據控制輸出
10.具備各種報警功能，實時檢測設備工作狀態，中文界面提示報警，通俗易懂，便于故障診斷
11.外殼采用輕質、高強度阻燃材料，耐磕碰、阻燃燒
12.485-I/O通訊，與工控機數據實時互換，便于主機輔機協同工作
13.采用全進口高端工業芯片，保證產品質量和穩定性
14.自主設計集成電路、開發軟件系統，掌握核心技術
15.2路24V直流供電（24W）,便于光電、傳感器、電磁閥之類配件用電
1.噪音低 The noise is very low
The products we developed have been tested and tested in practice. The noise generated by the products during operation is very low, only 30-40db.
2.輸送平穩 Smooth transportation
Our series of products, under the premise of ensuring the speed, the material in the process of conveying smooth sliding forward, small jump, no damage to the material.
3.分辨率高 High resolution
The vibration amplitude of the equipment is small and uniform, and the precision, light and thin parts can be accurately sorted and aligned at high speed.
4.能耗低 Low energy consumption
In the case of conveying the same material, the power consumption of the piezoelectric feeder is less than 10% of that of the electromagnetic feeder, which can save more than 90% of the power consumption.
5.速度可調范圍寬 Wide speed adjustable range
By adjusting the power controller, the material speed can be controlled freely. It is convenient and flexible, with a large controllable range, and can meet a variety of needs.
6.結構簡單、調節方便 Simple structure and convenient adjustment
Under different working requirements, the piezoelectric feeder does not need to readjust its internal structure, but only needs to adjust the working voltage and frequency of the controller.
7.物料免磁化 Magnetization free material
The piezoelectric feeder is driven by piezoelectric elements, so it does not produce or accept magnetic interference, and there is no magnetization problem to the material.
